ASG submersible sewer grinder pumps
AUD · Includes 10% GST
Ready to order
Technical specificationsDownload pump datasheet
Delivery time depends on the selected item and location.
Product details+

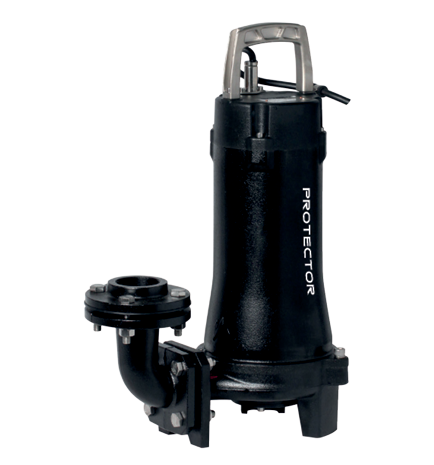

The ASG Submersible Grinder Pump features a semi-open impeller with a hardened stainless steel grinding system, efficiently reducing solids for clog-free drainage. The high-pressure impeller ensures smooth operation, making it ideal for demanding wastewater applications.
Built for durability, the ASG pump is constructed from heavy-duty HT200 cast iron with a stainless steel shaft, ensuring long-lasting performance. It includes thermal overload protection for enhanced motor safety and guide rail kits for easy installation across all models.
- SEMI-OPEN IMPELLER DESIGN WITH HARDENED
STAINLESS STEEL GRINDING SYSTEM - THE LARGE-DIAMETER IMPELLER GENERATES A HIGH
PRESSURE, AND THE GRINDING SYSTEM GRINDS SOLIDS
INTO SMALL PIECES, WHICH CAN BE DRAINED WITHOUT
CLOGGING THE PIPES - HEAVY DUTY HT200 CAST IRON CONSTRUCTION
- STAINLESS STEEL SHAFT
- GUIDE RAIL KITS AVAILABLE FOR ALL MODELS
- THERMAL OVERLOAD PROTECTION
APPLICATIONS
- Private Residences
- Strata Buildings
- Recreational Developments
- Hospitals
- Restaurants
MOTOR
- Frequency / Pole number: 50Hz/2
- Insulation Class: F
- Protection Class: IPX8
- Heavy Duty Ball Bearings
- Double silicon / carbon mechanical seals
OPERATING CONDITIONS
- Medium temperature: 0-40°C
- Max Immersion Depth: 5m
Downloads & technical documents

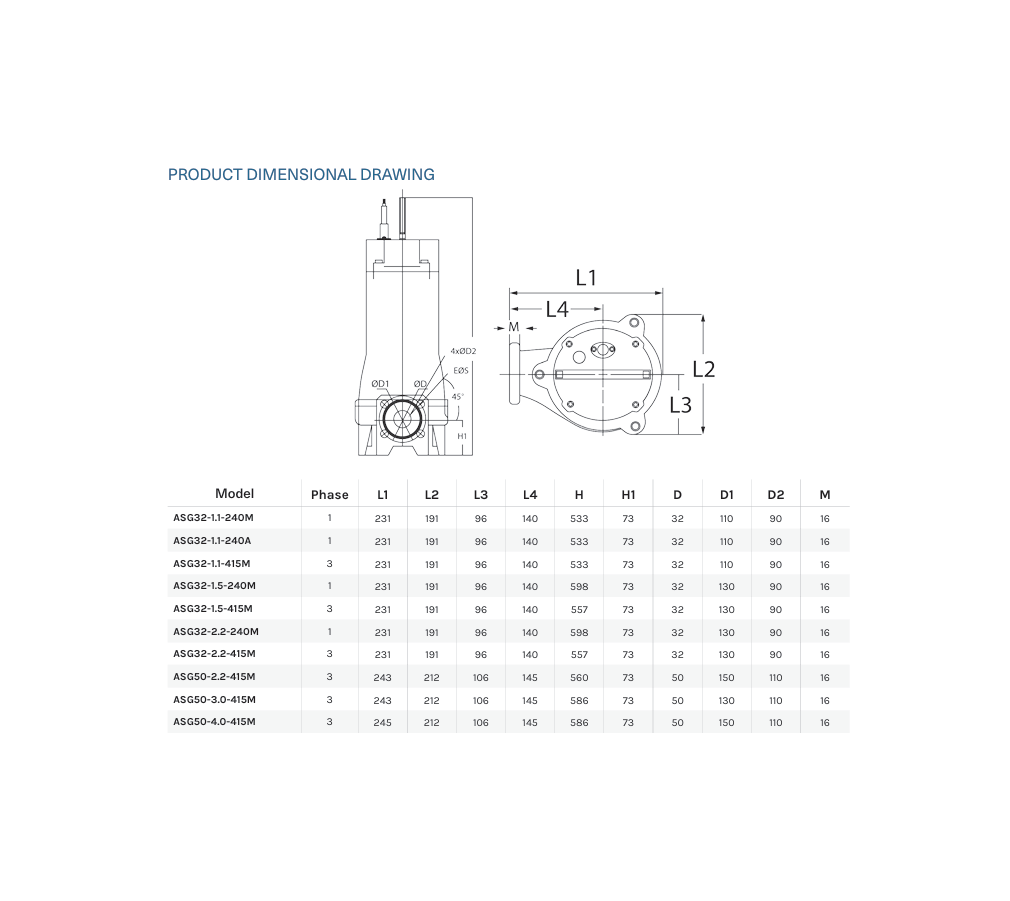

The complete ASG datasheet includes specifications, operating limits, model data, performance curves and dimensional drawings.
Download ASG complete datasheet (PDF)
Open the PDF to view, save or print the full document. The individual technical images are also available above.

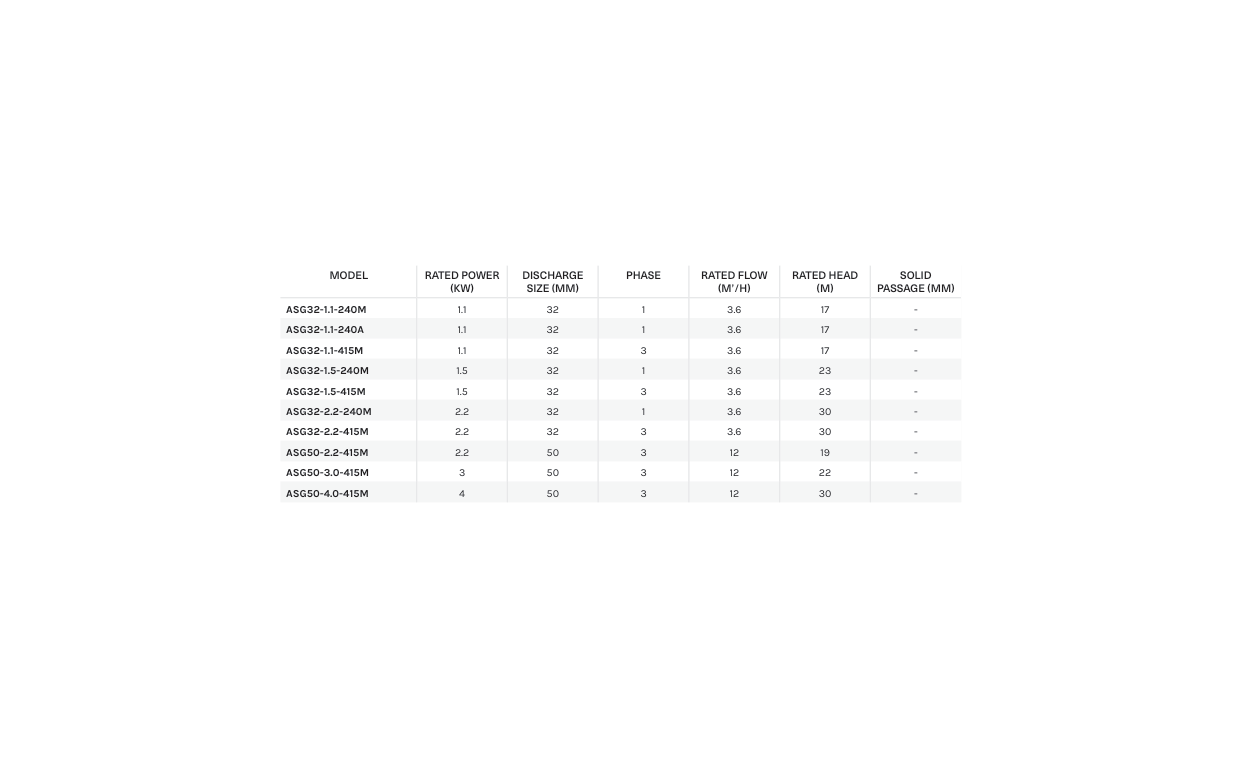

Model specifications

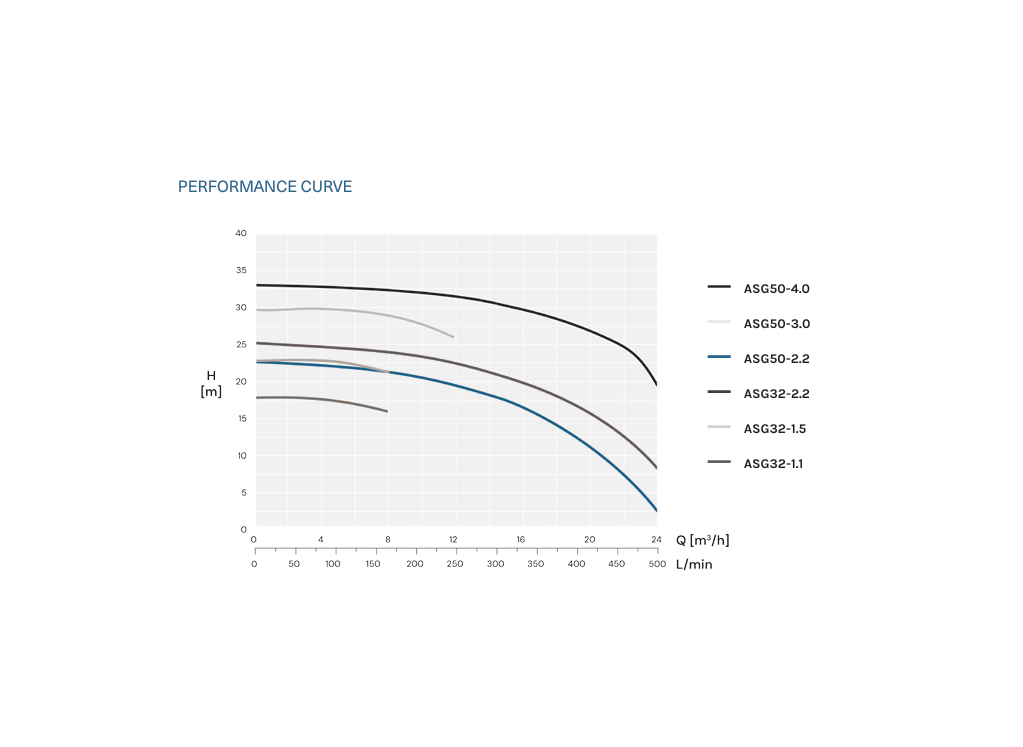

Rated duty points from the linked product datasheet. Use the performance curve to confirm your operating duty.
| Model | Power (kW) | Phase | Rated flow (m³/h) | Rated head (m) |
|---|---|---|---|---|
| ASG32-1.1-240M | 1.1 | 1 | 3.6 | 17 |
| ASG32-1.1-240A | 1.1 | 1 | 3.6 | 17 |
| ASG32-1.1-415M | 1.1 | 3 | 3.6 | 17 |
| ASG32-1.5-240M | 1.5 | 1 | 3.6 | 23 |
| ASG32-1.5-415M | 1.5 | 3 | 3.6 | 23 |
| ASG32-2.2-240M | 2.2 | 1 | 3.6 | 30 |
| ASG32-2.2-415M | 2.2 | 3 | 3.6 | 30 |
| ASG50-2.2-415M | 2.2 | 3 | 12 | 19 |
| ASG50-3.0-415M | 3 | 3 | 12 | 22 |
| ASG50-4.0-415M | 4 | 3 | 12 | 30 |
Delivery+
We supply by shipment. Delivery charges and available delivery services are shown at checkout for your address. For bulky items or an address that cannot be quoted online, contact us before ordering.
Need a hand choosing?+
Not sure which size or model you need? Tell us what you’re connecting or replacing.
Ask about this productAvailable options
| Model / option | Product code | Price (AUD) | Availability |
|---|---|---|---|
| ASG32-1.1-240M | — | $1,650.00 | Ready to order |
| ASG32-1.1-240A | — | $1,650.00 | Ready to order |
| ASG32-1.1-415M | — | $1,650.00 | Ready to order |
| ASG32-1.5-240M | — | $1,960.00 | Ready to order |
| ASG32-1.5-415M | — | $1,960.00 | Ready to order |
| ASG32-2.2-240M | — | $2,085.00 | Ready to order |
| ASG32-2.2-415M | — | $2,085.00 | Ready to order |
| ASG50-2.2-415M | — | $1,960.00 | Ready to order |
| ASG50-3.0-415M | — | $2,190.00 | Ready to order |
| ASG50-4.0-415M | — | $2,270.00 | Ready to order |
